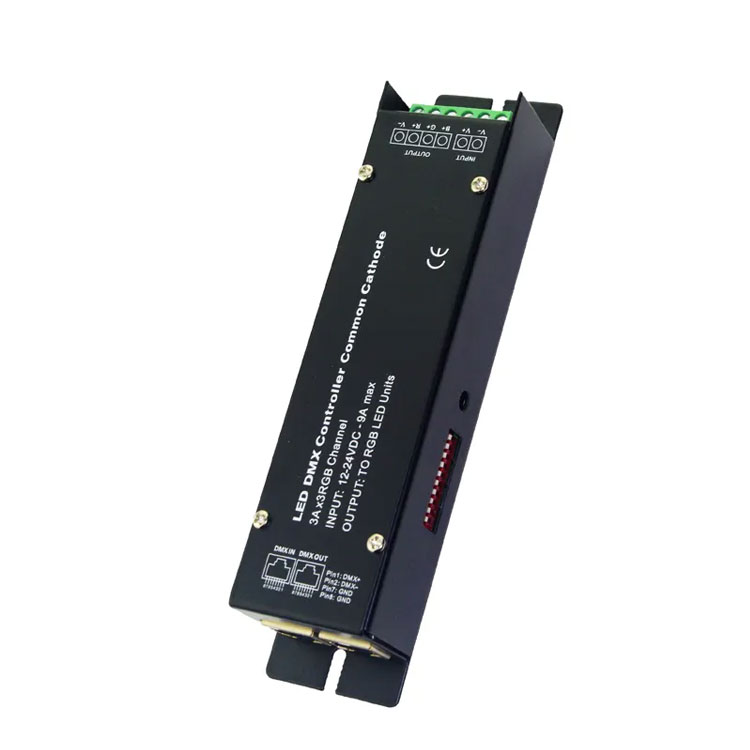

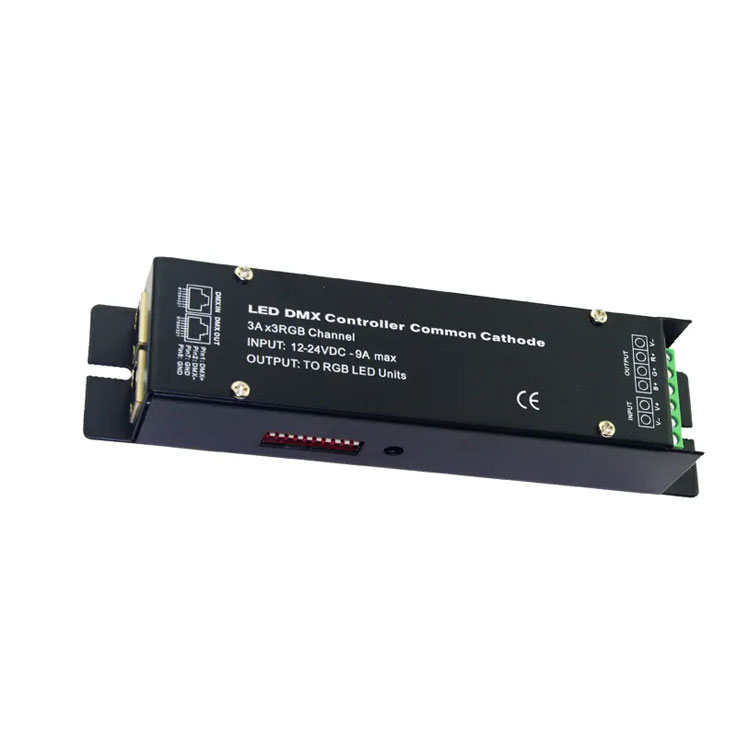

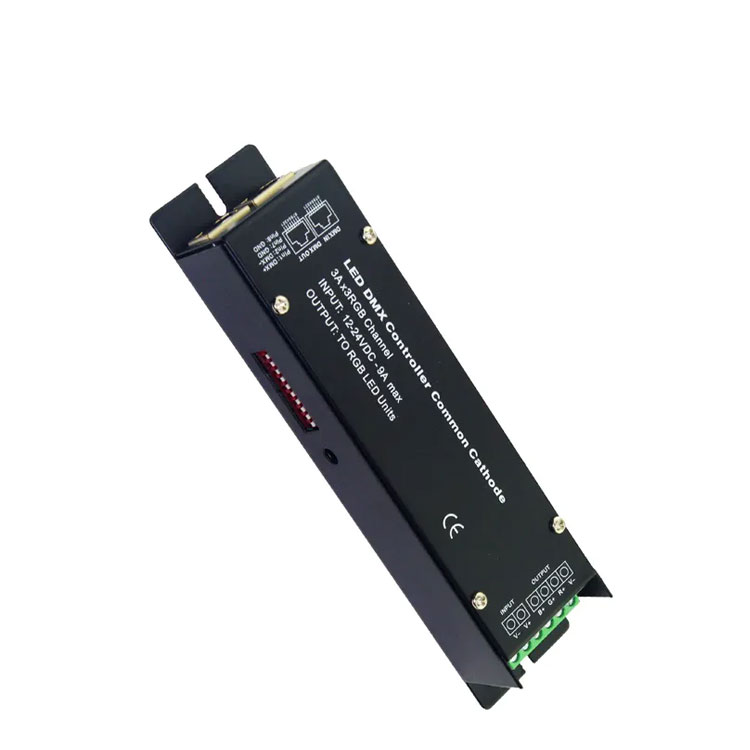

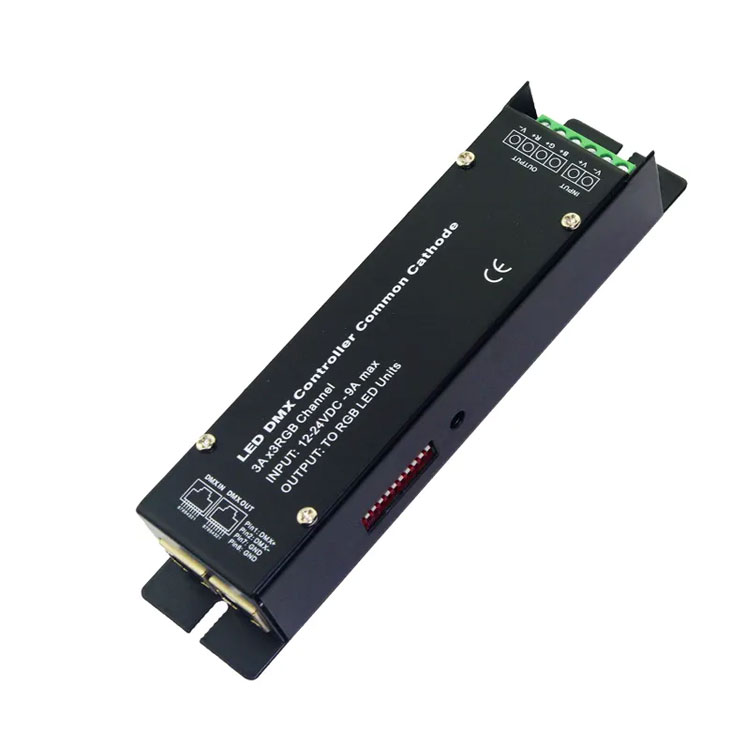

Function
1. Each DMX common controller occupied 3 DMX addresses,switch which is setting DMX original address code from 1 to 9,1 is the lowest,and 9 is the highest,511 address codes could be setted in all .DMX original address code equal aggregate value from 1 to 9,dial the coding switch upwards(ON is setted 1),thevalue of bit can be gotten, on the contrary, the value of bit is 0.For example: if you want to set 37 as the address code , you can only dial down the first ,the third and the sixth code switch value from 1 to 9 is 32+4+1 , that is ,the original address code of DMX512 is 37.
2. DMX signal can be received when coding switch FUN(10)=OFF.
| Switch1-9 is off | Black |
| Switch1=ON | Red |
| Switch2=ON | Green |
| Switch3=ON | Blue |
| Switch4=ON | Yellow |
| Switch5=ON | Purple |
| Switch6=ON | Cyan |
| Switch7=ON | White |
| Switch8=ON | Seven-color jumpy changing(8 steps speed ) |
| Switch9=ON | Seven-color gradual changing(8 steps speed ) |
3. when coding switch that FUN(10) is ON . its function is as follows:
Sfafety Information
1. The input voltage of this controller should be follow.The specifications , Other high voltage would most
probably destroy it .
2. Never connect two wires directly in case of short circuit.

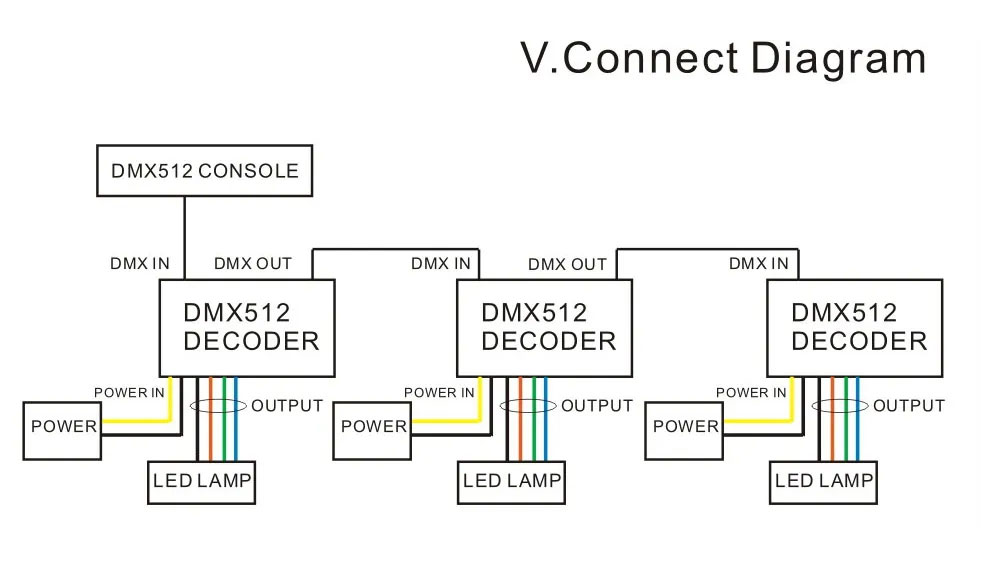

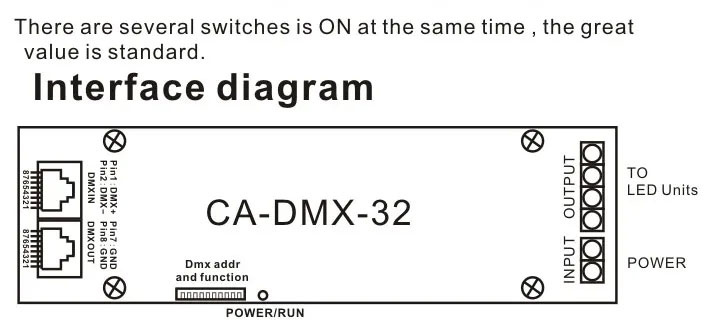

3. Lead wire should be connected correctly according to colors that connecting diagram.
4. Warranty of this product is one year , in this period charge ,but exclude the artificial situation of damaged.
